Brand Name : CNLN
Model Number : Globe valve
Certification : CE/ISO
Place of Origin : China
MOQ : 1pc
Price : USD100-USD500/PC
Payment Terms : T/T
Supply Ability : 3000pcs per month
Delivery Time : 2-3days
Packaging Details : Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Name : Cryogenic Globe Valve
Pressure : Medium Pressure
Temperature of media : Low Temperature
Size : 1/8"~4"
Body material : stainless steel
Power : Petroleum Chemical Industry
Medium : LNG, LN2,LAr2

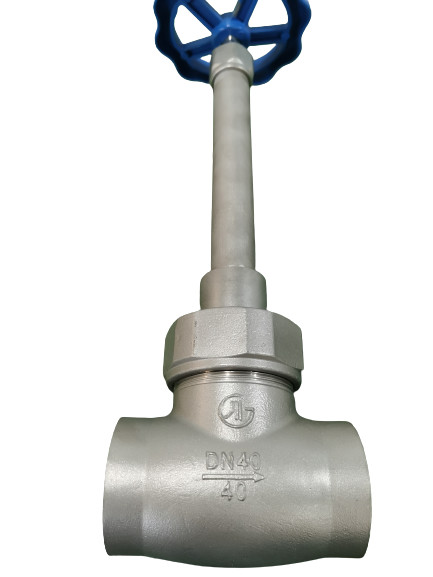

DN40 Cryogenic Globe Valve In Petroleum Chemical Industry
Cryogenic Globe Valve Application scope:
petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering and other
industries.
Notes When Use
1 . It should ensure that the pipe is blown clean before installation.
2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.
3 . This valve has been degreased. Store and keep clean when installing.
4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.
5 . The installation system diagram with the oil-free requirements should be degreased.
6 . Slowly open and close during use.
7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.
8 . For parts such as gaskets and sealing materials, replace them with new ones each time.
Cryogenic Globe Valve Parameters
Pressure rating and size: | PN16-PN50 |
| DN10 to DN200 |
|
|
| Body : F304(L),F316(L),LF2, LF3, F11,F51 |
Material: | Disc : F6a,F304(L),F316(L),F51 |
| Stem : 304(L),316(L) |
| Bonnet : A105N,F304(L),F316(L),LF2,F11,F51 |
Operated type: | Handwheel |
Structure: | Outside screw and yoke |
Flange connection: | ANSI B16.5 |
Butt-weld ends: | ASME B16.25 |
Socke-weld ends: | ASME B16.11 |
Screwed ends(NPT): | ANSI/ASME B1.20.1 |
Medium: | W.O.G |
Temperature: | -80 to +80°C |
Certifications
Valve Package
FAQ
Q1. What is your MOQ?
Our MOQ is one piece.
Q2. Do you provide sample for customer?
Yes, sample is available.
Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.
Q4. Do you support customization?
Yes, customization is acceptable.
Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.
